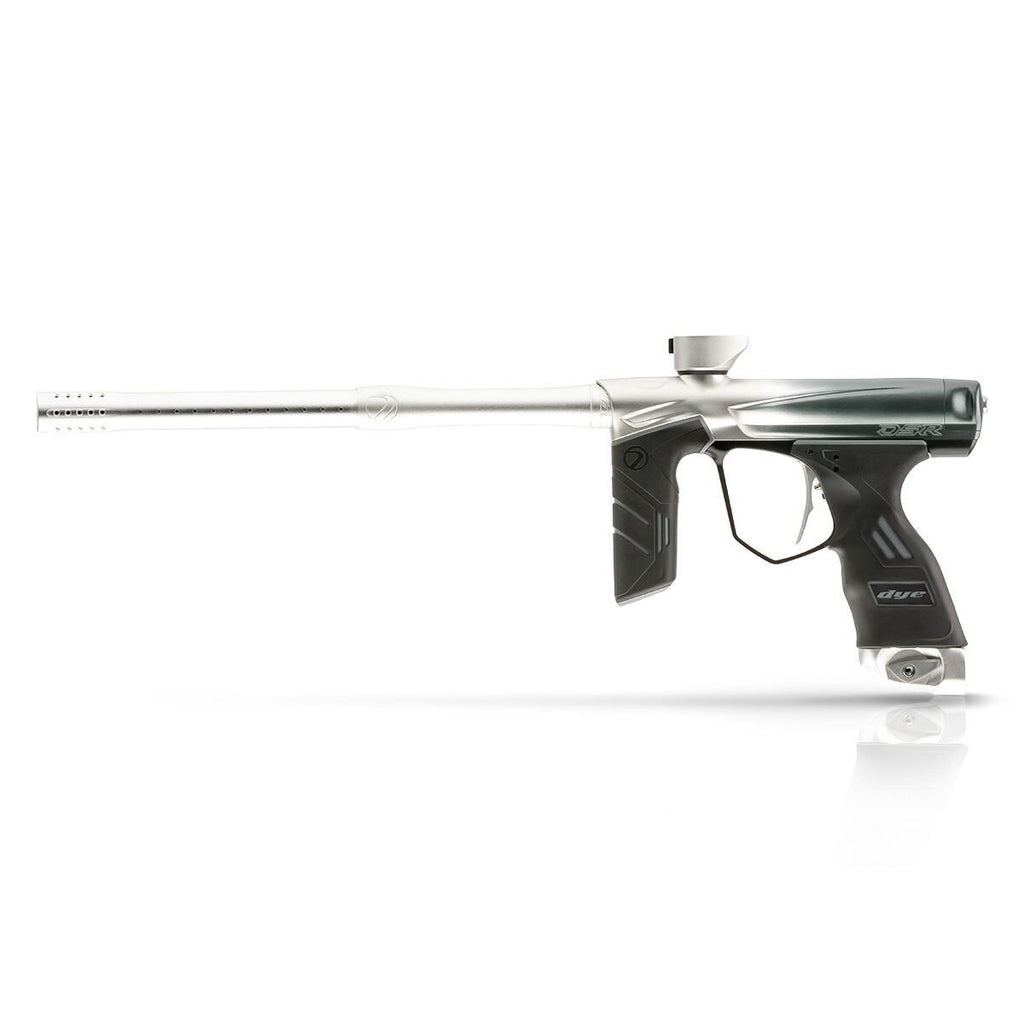

Dye DSR - Silver Bullet

DYE is proud to release the all-new DSR. After extensive market research, listening to players, and DYEs passion for innovation in the sport the next advancement in paintball marker technology is here. The DSR is a groundbreaking new platform that offers everything competitive players are looking for and much more.

The all-new ARC Bolt is DYEs cutting edge engine that delivers amazing performance in a robust, reliable package. Optimized flow paths, independent valve control, air supply cut off, and nearly zero chamber expansion are all critical to the ARCs outstanding air efficiency. The two stage bolt acceleration, air spring, impact bumpers, and ultra-low 115 operating pressure ensure a smooth, quiet, and accurate shot that is extremely gentle on paint.

Performance is at the core of every component in the DSR. The new Hyper 6 regulator with coil spring, improved air dynamics, and simplified serviceability coupled with DYEs new unique custom solenoid breathe life into the DSR and ARC Bolt. The 3rd Generation Eye Pipe System, Quick Release Bolt, and Free Wire Connectors make service effortless, while the Method Operating System and OLED screen provide intuitive operation for fine tuning.

The DSR is not just raw performance and muscle. True to DYEs design theory, the DSRs ergonomic comfort is second to none with features including the UL Frame hourglass design and dual density full wrap Sticky Grips with precisely layered micro- texture that provide ultimate comfort. The updated TruCam Airport, Edge1 trigger, and new Core DYE Barrel give you total control over the powerful new DSR. DYEs craftsmanship is unmistakable in the DSR from the endless performance features to the crisp strong lines that race uninterrupted across the low profile DSR body with no bulky plates or exposed screws. The DSR is a sleek, compact, and efficient machine built to outperform and outlast the competition.

Features

• Arc Bolt
• Quick Release Bolt
• MOS- Method Operating System
• Control Joystick
• Gas-Thru
• 3rd Gen. EYE-PIPE
• Ultralite 45 Frame
• Edge1 Trigger
• DYE Sticky Grip
• Lockdown Clamping Feedneck
• Colored O-ring's
• Quick Battery Access
• FreeWire Connector
• Low-Profile Design
• UL TruCam Airport
• Core Barrel
• Hyper6 Regulator
• Hard Foam Case

Details

ARC Bolt-The all-new ARC Bolt is DYEs groundbreaking new engine that delivers amazing performance in a robust, reliable package. The ARC Bolts smooth, quiet shot, high efficiency, and soft touch on paint is the end result of precise engineering. Optimized flow paths, dwell independent valve control, air supply cut off, and nearly zero shot chamber expansion are all critical to the ARCs air efficiency. Two stage bolt acceleration, air spring, impact bumpers, and an ultra-low 115 psi operating pressure ensure a smooth, quiet, and accurate shot that is extremely gentle on paint.

Quick Release Bolt-The all-new Quick Release Bolt Assembly is a robust gate system with air lock that prevents accidental bolt release and securely holds the bolt in place. A simple push button system allows the user to remove and re- install the bolt kit in seconds. Standard maintenance has never been easier or more accessible

MOS - Method Operating System-The DSR is powered by DYEs Method Operating System. The MOS gives the operator unrestricted access to precision tuning and unsurpassed performance. The optimized MOS programming logic ensures lightning fast response time, long battery life, precision tuning, and dual player profiles to store your exact playing specifications. Communication between frame and body is facilitated through the Freewire Connector Pins. Compression pins ensure a positive connection between performance driving hardware and the MOS. DYE Freewire Connector Pins eliminate awkward wire routing and dramatically improve serviceability. The MOS is truly advanced performance in the palm of your hand.

Control Joystick-The 5-way Control Joystick and high contrast OLED display screen provide an intuitive user interface.

Gas-Thru-A direct air passage through the frame improves ergonomics and performance. No pipes, hoses, or complex routing paths are present on the DSR. Radial bore sealing o-rings ensure a positive seal from ASA to the marker/

Eye Pipe Breech System-DYEs Patented 3rd Generation Eye Pipe Breech System shields the anti-chop eye system from any dirt and broken paint. The thick, durable polycarbonate pipe is wiped clean by the bolt tip o-ring on every firing cycle creating a self-cleaning system that ensures the eyes are always monitoring the breech and ball drop. DYEs proprietary Eye Pipe system protects your DSR from harsh environments and eliminates performance-hindering breech wear. The extended-life Leaf Spring Ball Detents are integrated into the Eye Pipe to prevent double feeds and chopped paint as well as eliminating the need for bulky exterior eye plates.

UltraLite 45 Frame-The UL 45 Frame is the culmination of top pro-player influence and progressive engineering. Designed specifically for modern double finger triggers, the UL Frames hourglass shape was ergonomically designed to give the player ultimate control, comfort, and performance. The UL Frame combined with DYES famous Sticky Grips offer a secure grip for stability and accuracy while encouraging sustainable, rapid trigger speed.

Edge1 Trigger-The Edge1 Trigger is a blade-style trigger with adjustable travel, activation, and resistance. Allowing optimal tuning for unbeatable speed, reaction time, and ultimate trigger control.

Patented DYE Sticky Grips-The full wraparound Sticky Grip with micro-texture provides the ultimate grip. Dual density design offers comfort and control. The single screw design utilizes a durable locking system to ensure a rock solid grip and quick access for service.

Lockdown Clamping Feedneck-The adjustable cam lock lever allows you to securely lock your R-2 Loader onto your gun without tools. DYEs Lockdown Feedneck sits low and tight on the marker making sure your R-2 keeps a low profile.

Color Coded O-RingsPioneered by DYE Precision and designed to make it easy to quickly identify the correct replacement o-ring when performing maintenance on the DSR.

Quick Battery Access-Battery access made extremely simple. Simply use the quick-turn recessed lock nut and slide the dual-density grip with micro-texture off for easy battery access.

Freewire Connector-No wires between the frame and body with quick disconnect contact pads. Eliminates awkward wire routing and dramatically improves serviceability. New protected connection helps prevent water intrusion.

Low Profile Design-All-aluminum body construction with no exposed screws or eye plates.

UL TruCam Airport-The UL TruCam Airport is a balanced cam system with an easy turn on/off toggle lever featuring a single o-ring design. The recessed lever design ensures extra protection from accidental degassing of the system. The sleek, compact airport is integrated with the Hyper 6 Regulator into a simplified easy-to- service air handling cartridge that provides extremely efficient air flow.

Core Barrel-The new Core 14 two-piece barrel comes with DYEs proven vent hole pattern in the trademarked Steady Port Tip. The Core control back is finished under the most extreme tolerance specifications. Self-aligning two piece construction ensures properly centered assembly between control bore and the Steady Port Tip. This combination of precision components provides a quiet shot, superior accuracy, and unbeatable performance.

H6 Regulator-The Hyper 6, now with a more efficient airflow path and consistent piston movement. The latest generation of DYEs trusted line of regulators is the most reliable and consistent regulator DYE has produced to date. Updated with a single coil spring and top load assembly that allows for exceptionally easy service. Integrated into the Hyper 6 is a pressure bleed-off to ensure no air is trapped in the marker when degassed. Improvements focused on performance, reliability, and safety to ensure the best playing experience possible.

Hard Foam Case-Features an EVA foam lining for secure protection of the DSR. Slick Lube, quick start guide, DYE Core allen key set, and barrel sock are included with the marker.
